Product Description

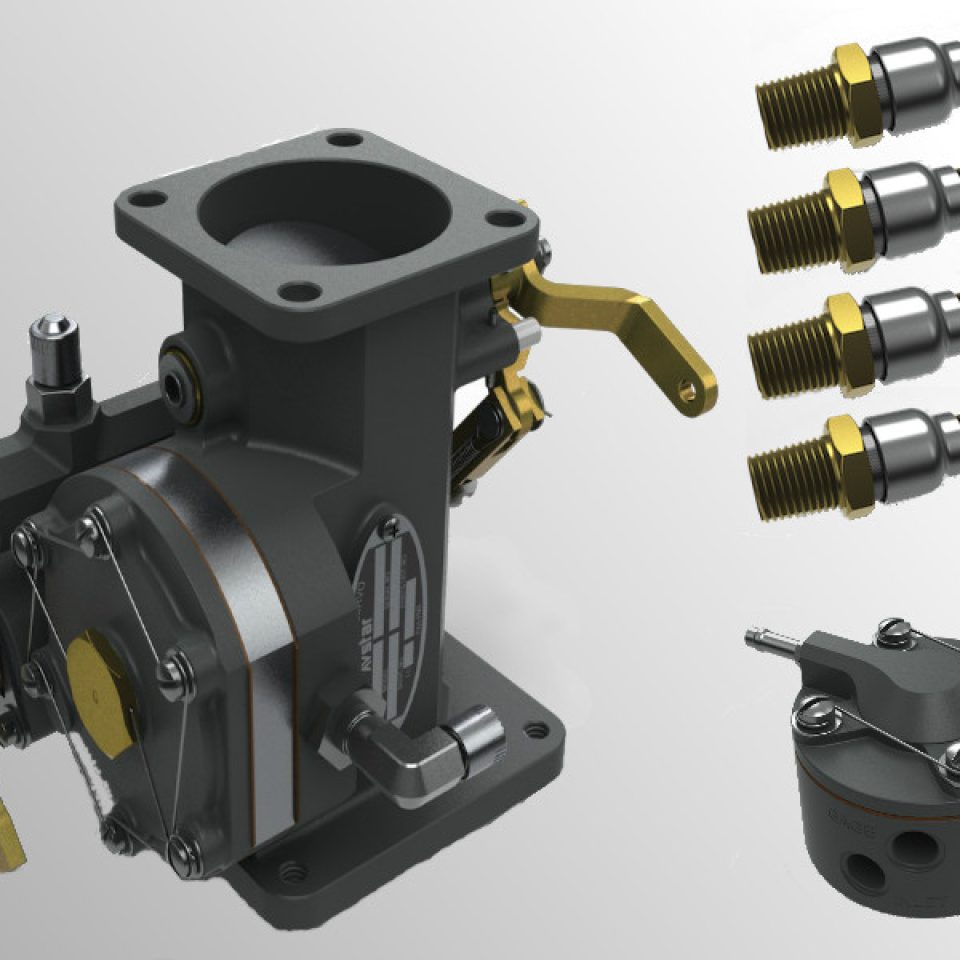

NEW, OUTRIGHT AVSTAR EXPERIMENTAL SERVO KIT AVX320-1
Engine Application: Lycoming IO-320/0-320 Engines with 150/160 Horsepower
Kit includes the following:
(1) AVX3015008-1 Fuel Injector Servo Assembly
(1) AVX3015004-1 Flow Divider Assembly
(4) AV2524864-2 Nozzles
Don’t you deserve the same system used by the world class aerobatic flight team, Redline Airshows
Improves Flight Safety – Lower Operating Cost – Superior Quality
Stronger & Lighter Main Body Material
- AL 6061-T6 Billet Machined Throttle Body to Bowl
- 30% increase in yield strength over legacy cast material
- Eliminates plug thread deterioriation causing leaks
- Legacy castings are prone to cracks and porosity
- AVStar’s Fuel Systems average a 15% reduction in weight by design resulting in lower operating costs
Corrosion Resistance
- Fully anodized billets have much higher corrosion resistance than legacy castings
- More stainless components in each fuel system
Consistent Air Fuel Ratio Performance
- Billet machined venturi’s for improved and consistent air flows
- Optimized air fuel metering using advanced fluid dynamic analysis validated by the world’s largest piston engine manufacturer, Lycoming Engines
Specifications
- Weight: 128 oz
- Width: 10 in
- Depth: 10 in
- Height: 10 in
